Project name |
: Installation of Steam Turbine Generator |
Location |
: Jakarta Indonesia |
Year |
: August 2010 |
Cargo : |
: 140Te Generator |
In the middle of August 2010, Yew Choon has installed a 140Te Generator at the Muara Tawar Power Station, Jakarta, Indonesia.
For this installation, the SBL1100 4-Point Lift System was utilized.
The installation came with some exciting engineering challenges due to the space restrictions in all directions.
The whole setup/ installation and dismantling of the SBL1100 was completed in 2 days.

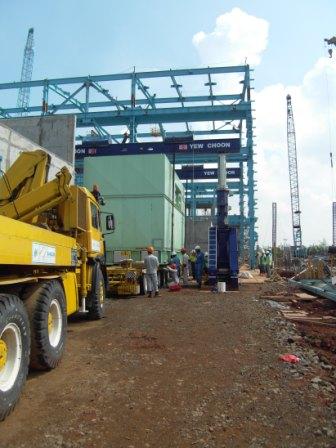

Start lifting after pick up from trailer
![M1](new photo/muata wara (1).JPG)

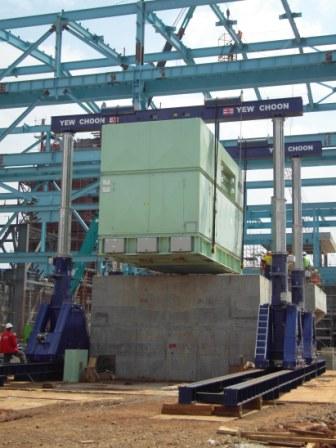

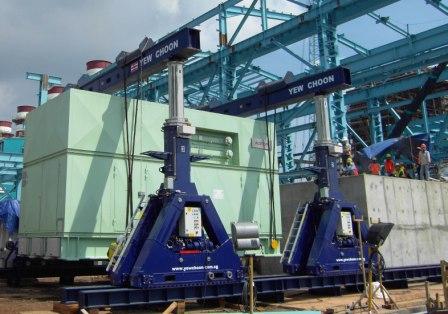

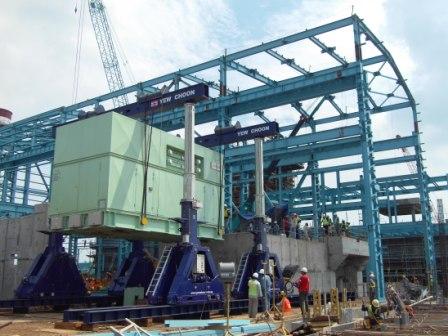

Generator at height for traveling above foundation
![M5](new photo/muata wara (2).JPG)
![M3](new photo/muata wara (3).jpg)
![M2](new photo/muata wara (4).JPG)
![](new photo/muata wara (5).JPG)
![](new photo/muata wara (6).JPG)
![](new photo/muata wara (8).JPG)

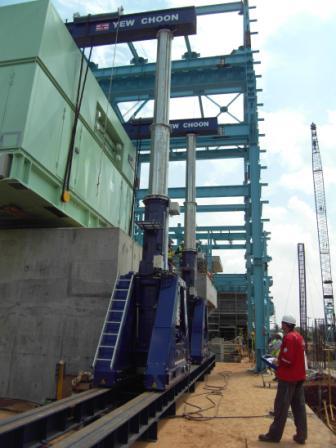

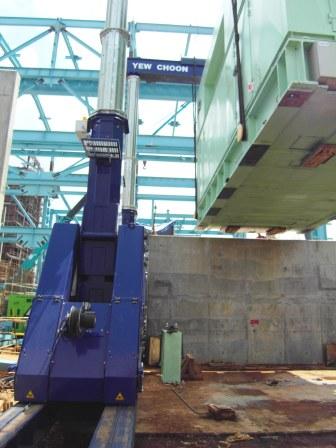

Traveling with the SBL1100 4 point lift system
![](new photo/SDC11752.JPG)
![](new photo/SDC11709.JPG)

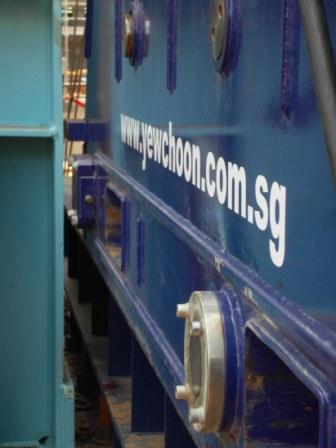

A tight fit
![](new photo/SDC11735.JPG)

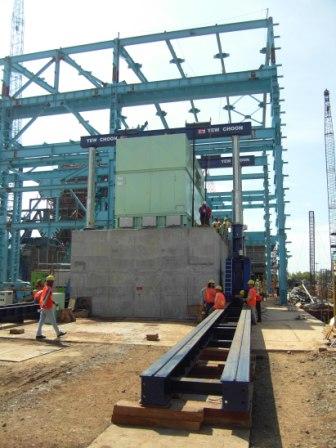

In all Directions
![](new photo/muata wara (9).JPG)

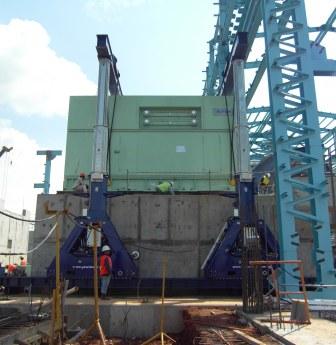

Generator above foundation
![](new photo/SDC11742.JPG)
![](new photo/SDC11756.JPG)

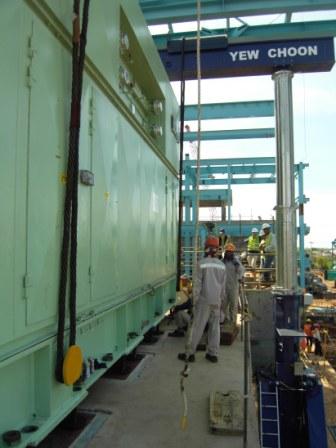

Lowering the generator over its anchor bolts |
